Melody1200 Overview
Overview Variants Tech. Description Expansions

D S P powered

>> MPEG Layer-3 <<

hardware support


Hardware:
  • usage of high performance 20 bit HIFI CODEC
  • high samplerates of 44.1kHz und 48kHz
  • does not disable the use of modern CPUs
  • may get used together with RS232/V24 board for the same connector (Hypercom needs small modification while our board doesn't for sure)
  • Playback and Recording at the same time (Full-Duplex)
  • Usefull for A1200 and -Tower
  • three inputs offering variable gain, one of them is located internal and intended for connecting a CD-Reader
  • Pass-Thru und Monitoring
  • very small outlines caused by the use of modern technologie
  • modular, extendable concepts
  • Multilayer PC (Printed Cirucuit Board) using tons of different planes
  • useable with B-Vision
Software:
  • AMPlifier - powerfull Player for MPEG-Audio etc. Playback with Playlist, ID3-Tag support and so on.
  • Tool for setting Audio Prefs (Commodity)
  • Recording Tool
  • anything which supports AHI (games included)
Drivers:
  • Xaudio.device
  • mpeg.device
  • AHI
  • toccata.library (for example Samplitude)
Enclosed:
  • cover for the Expansionslot
  • bracked for use at A1200Tower
  • cable for interconnecting the boards

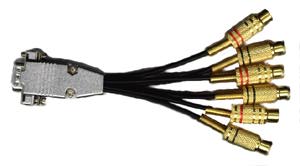

  • high quality adaptor for connecting Melody's SubD to "golden" RCA connectors (female)
  • Instructions
  • CD-ROM

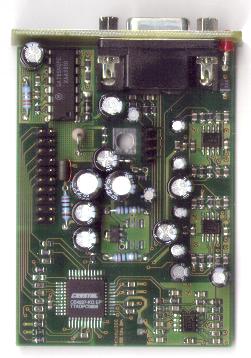

Analog part:

It's the same for all Melody12000 which are available today. It's interconnected via ribbon cable and transports digital data only (free of loss!).)


Enclosement:


bracket and manual are not shown here








Host part (PRO is shown):

It's interconnected to the analog part.
